Jaguar V12 to Tremec TKO/TKX 5sp Bellhousing

Regular price $950.00

Description

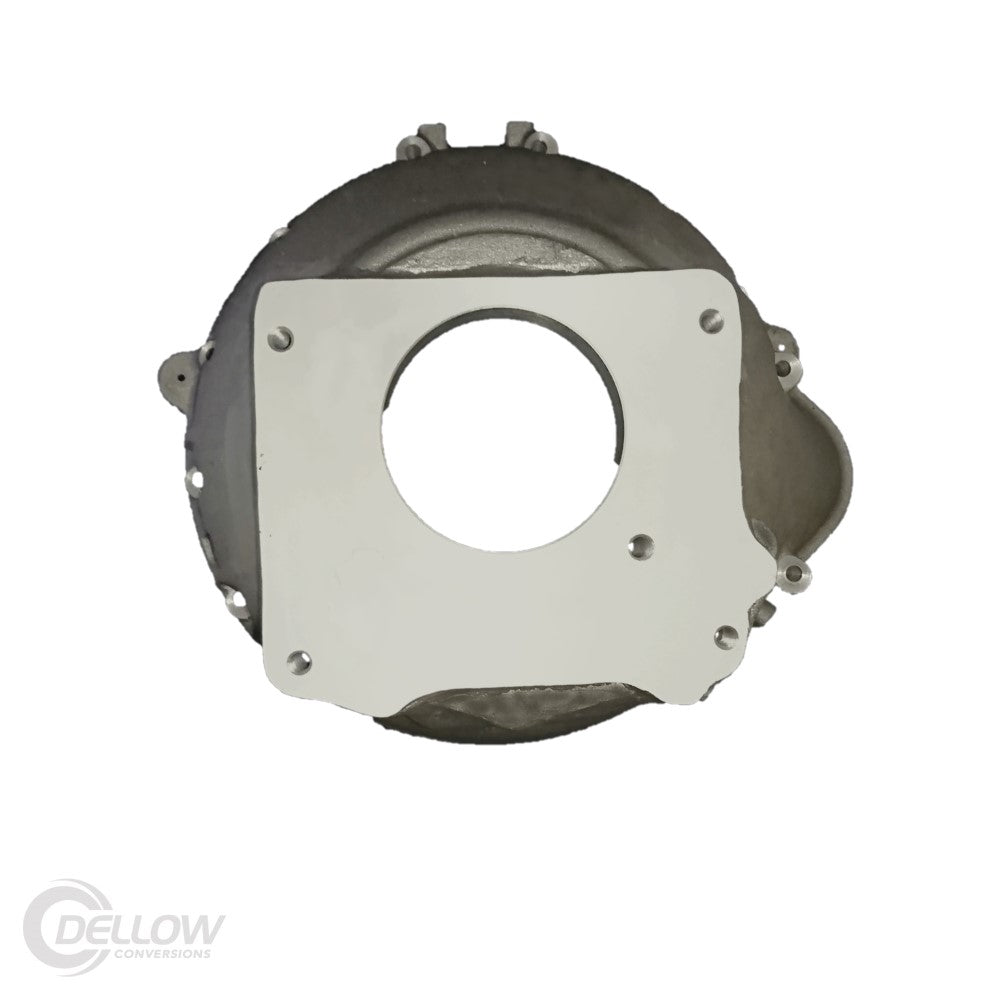

New Dellow Conversions cast aluminium precision CNC machined bellhousing couples the Tremec TKO / TKX transmission to the Jaguar V12 5.3L- 6L engine. The Tremec TKO / TKX gives you the ability to run a much stronger, reliable, tried and proven transmission to your Jaguar. The Tremec TKO / TKX is ideally suited to the Jaguar due to the overdrive which allows low RPM cruising on the open road.

Other parts available:

  • Spigot Bush - Custom
  • Thrust Race & Carrier - Custom
  • Clutch Push Rod - Custom
  • Clutch Fork & Clip - Custom
  • Clutch Kit – 400bhp - Custom
  • Flywheel & Ring Gear
  • Flywheel & Pressure Plate Bolt Kit
  • Transmission Rubber Mount
  • Speedo Cable - Custom
  • Tail Shaft Yoke
  • Universal Joint
  • Weld Yoke

Conversion Notes:

  1. Please specify which TKO / TKX transmission is being used, GM (170mm front shaft) or Ford (183mm front shaft) as the bellhousing is made to length.
  2. Please specify whether using a concentric slave or if fork entry with pivot is required for bellhousing machining. The pivot uses our custom fork and clutch parts.
  3. When fitting the Ford TKX version input shaft spline count is required for correct clutch parts, 10 or 26.
  4. Spigot Tip of the transmission must be machined down to 12mm
  5. For supply of a flywheel, the late TH400 type ( 1977 onwards ) original automatic ring gear is required for fitting to a new flywheel. Please send your flexplate to PO Box 200, Milperra, NSW, 2214 Australia.

All Bellhousings and Conversion Kits, are made to order.

Please allow 4-5 weeks lead time.

Jaguar V12 to Tremec TKO/TKX 5sp Bellhousing - FORD TKO / TKX / Fork Hole Entry with Pivot is backordered and will ship as soon as it is back in stock.
